Location Caméra compacte fixe Marshall CV226 IP67

Ref: Marshall CV226


Miniature Camera Size

The Marshall CV226 can be positioned in very discreet locations with the ability to withstand dirty, dusty, and wet environments. Despite its compact form factor, the CV226 produces reliable crystal clear video over full-size 3G/HD-SDI (BNC) in Progressive or Interlaced resolutions up to 1920x1080. As shown with the optional CVM-6 accessory mount.



 CV226 Versatile Mounting Solutions

Improved Sensors and Design

The Marshall CV226 utilizes the latest Marshall sensor and processor technology with a step-up in video performance and very low noise threshold, even in low-light conditions. Additionally, the CV226 contains a more durable and flexible RG6 coaxial breakout cable to withstand heavy use and bend rotation.

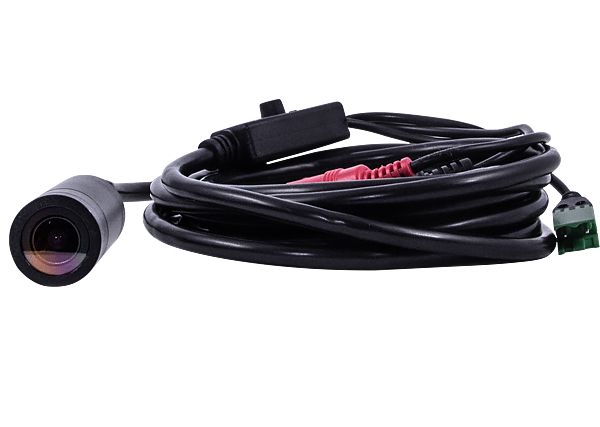

 CV226 Improved Cable Durability



Versatile Placement & Mounting

The Marshall CV226 includes a standard 1/4"-20 mount socket for use with tripods, gooseneck, and other camera mounting hardware. For enhanced flexibility, combine with the Marshall CVM-6 Adhesive Camera Mount Kit and lipstick clip.



 CV226 on Lipstick Mount Holder



Flexible Control & Framerate Options

Easily select between 60, 59.94, 50, 30, 29.97, 25, 24, 23.98fps at 1080p, 1080i, and 720p resolutions. For remote matching and adjustment, the CV226 supports RS485 Visca control, allowing precision picture adjustments to be performed from control rooms, OB vans, and or broadcast trucks.


CV226 Flexible Control Options


Full-sized 3G/HDSDI (BNC) output

2.5 Megapixel (1/2.86") sensor (4:2:2 color)

10-foot (3 meter) breakout cable with BNC (3GSDI), RS485 remote adjust, and locking 12V power

Interchangeable M12 lens with IP67 cap includes stock 3.6mm lens (72°H. AOV)

IP67-rated weatherproof housing; submerge in water up to 10-feet for several hours

Full-HD resolutions: 1920 x 1080p, 1920 x 1080i and 1280 x 720p

Frame rates: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 fps

Remote adjustable through RS485 (Visca) or OSD menu joystick

CV-RCP-V2 Touchscreen RCP compatible and free Camera Control Software option

Wide range of picture adjustment settings including white balance, color, gain control, pedestal (blacks), white clip, exposure, gamma, and more
